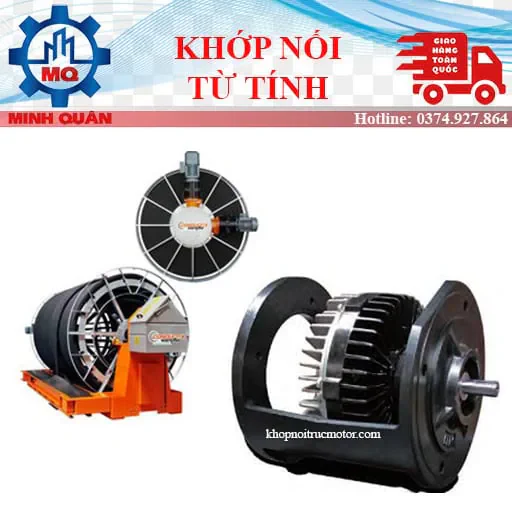

Khớp nối từ Conductix Wampfler Delachaux Group

Wampfler Delachaux conductix 94N62583.04

FOR REEL NO. 94N62583/04

COUPLER SPARE SET MA3 W/O MOTOR W/O

FREEWHEEL W/O COUPLING HUB (CO=0.18)Khớp nối từ Wampfler BNA38.1W33.M1026.3TP180

FOR REEL SERI NO. 304559/05

COUPLER SPARE SET MA3 W/O MOTOR W/O FREEWHEEL W/O

COUPLING HUB CO=0.32 ex 0480036/2

Magnetic coupler

Type W compl. DE 450N014

(Used for cable reel type :

BNA15 1W0M102638TC080; No 604352/02;

BNA 151W0M102620TC080+5C080ML;

Code Magnetic coupling Type: DE-440N132
(for cable reel type:
BNA301C55M11313TP180; No. 604352/01;
BNA361C99M14363TP180; No 604352/03)

Spare for reel #604265-01 / Change Coupler C=0.5 with Mariac seal in D coupler with Mariac seal

Coupler C is now out of range and have been replaced by coupler Cn or D depending of setting. In our case, coupler C=0.50 need to be changed by a coupler D=0.65.
COUPLER SPARE SET MA0 W/O MOTOR W/O FREEWHEEL
W/O COUPLING HUB CO = 0.65
FOR REEL NO. 604265/01

conductix Wampfler Delachaux

CONDUCTIX wampfler BNA38 1W55 Slipring MOTOR DRIVEN CABLE REEL MAGNETIC COUPLER

KHOP NOI TU LOAI C REF 47C0026 (WAMPFLER)

Motor coupling with brake 47C0026/2
Motor coupling without brake, with anti-run back bearing 47C0026/1
Motor coupling without brake, without anti-run back bearing 47C0026/3
Coupler type without motor, without anti-run back bearing 450N066/1
Motor coupling with brake 47C0023/2
Motor coupling without brake, with anti-run back bearing 47C0023/1
Motor coupling without brake, without anti-run back bearing 47C0023/3
Coupler type without motor, without anti-run back bearing. 450N066/2
47C0005/3 W motor coupling with motor without brake – without free wheel
47C0005/2 W motor coupling with brake motor
47C0005/1 W motor coupling with motor without brake – with free wheel
450N014 Replacement kit for coupler W (joints, screws and bolts, key, without motor – without free wheel

BNA 70 4 4.15418.22 Conical pinion

BNA 50 4 4.26317.69 Conical pinion

BNA 40 4 4.26317.53 Conical pinion

BNA 30 4 4.26317.52 Conical pinion

Thông số kỹ thuật khớp nối từ Conductix Wampfler Delachaux Group
